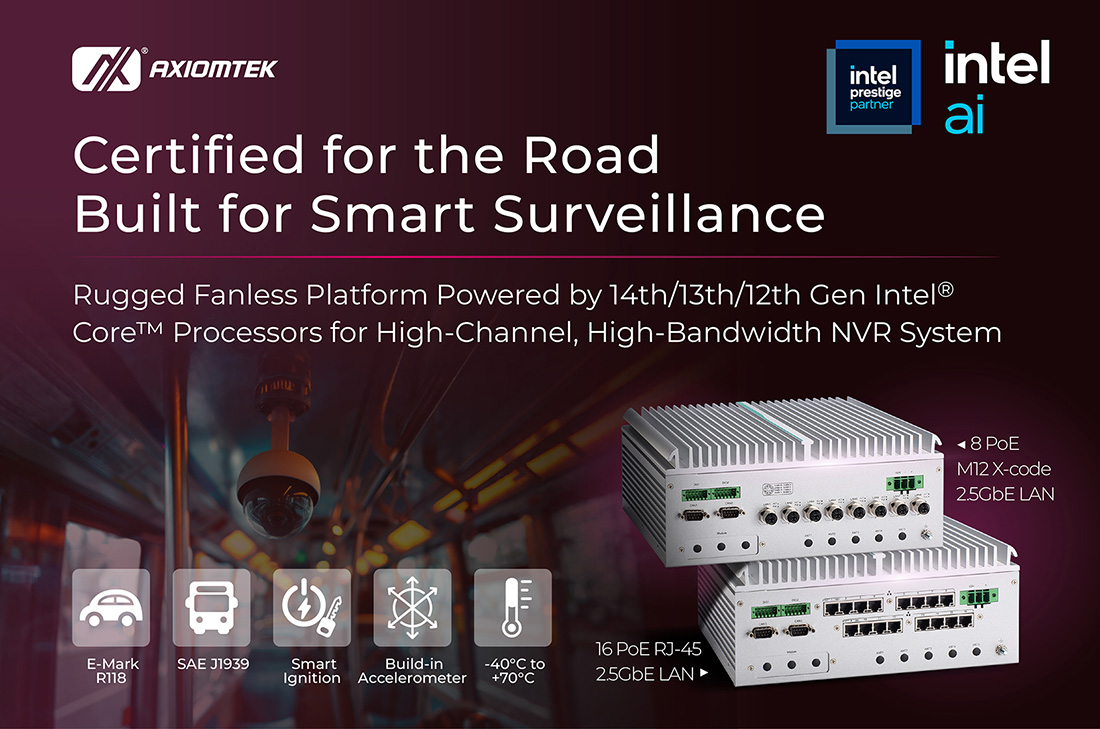

Axiomtek – a world-renowned leader relentlessly devoted to the research, development, and manufacture of innovative, highly efficient, and reliable industrial computer products – proudly introduces the UST520, a high-performance in-vehicle NVR platform designed for intelligent video analytics. Powered by 14th/13th/12th Gen Intel® Core™ processors with DDR5 memory support and two or four swappable SATA drives with RAID protection, the UST520 delivers the processing performance and storage resilience required for high-channel NVR recording and mobile video analytics in demanding onboard environments. As a qualified Intel® ESQ device for Metro AI Suite, the UST520 is also designed to support AI-driven video analytics at the edge.
Certified for the Road, Engineered for Harsh Mobility
The UST520 features E-Mark and R118 COC-ready certifications to accelerate regulatory approval and shorten time-to-market for fleet operators and system integrators. Designed for harsh mobility environments, the fanless system supports a wide operating temperature range from -40°C to +70°C and withstands up to 3 Grms of vibration (with SSD). For HDD-based NVR applications, an optional anti-vibration kit further enhances recording stability.
Massive Camera Integration with Software-Defined PoE
Designed for high-density surveillance, the UST520 supports up to 8 or 16 2.5GbE PoE ports via M12/RJ-45 connectors. By eliminating external PoE switches, the system reduces wiring complexity, saves installation space, and lowers total deployment cost. Our PoE Manager software enables individual port control and monitoring, allowing operators to remotely manage power status and optimize maintenance efficiency without physical intervention.
Smart Ignition for Battery and Data Safe Operation
The UST520 supports a wide 12/24/48 VDC input range (9–60 VDC configurable), enabling seamless deployment across diverse vehicle platforms. Smart Ignition protects system health through configurable IGN ON/OFF delay and low-voltage shutdown mechanisms at the BIOS level, preventing unexpected data loss and unstable system behavior. In addition, Axiomtek’s DigiHub provides API tools that enable developers to manage Smart Ignition directly at the OS level, supporting flexible integration and customized power control interfaces.
Event-Driven Surveillance Architecture
With a built-in accelerometer, the UST520 enables motion-triggered and impact-aware recording without additional sensor modules. This event-driven architecture eliminates the need for additional external sensor modules, saving valuable system space and reducing hardware complexity, while ensuring accurate incident recording and uploading.
“Fleet operators today face increasing challenges in deploying high-channel onboard NVR systems, including complex wiring, limited onboard installation space, unstable vehicle power conditions, and growing cross-regional compliance requirements,” said Violet Hsu, Product Manager at Axiomtek. “The UST520 is not only a compliant and rugged hardware platform, but a solution-ready package tailored for transportation surveillance, including domain-specific software APIs, vertical application integration support, and compatible peripherals. Together, this ecosystem-driven architecture enables customers to deploy scalable, compliant, and service-ready onboard surveillance systems with reduced integration risk and faster time-to-deployment.”
Axiomtek’s UST520 is available now. For more product information or customization services, please visit our global website at www.axiomtek.com or contact one of our sales representatives at [email protected].
Advanced Features of UST520
- CE, FCC, E-Mark, and R118 certified
- LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (35W) with Intel® R680E
- Qualified Intel® ESQ for Metro AI Suite Devices
- Fanless design with a wide operating temperature range from -40°C to +70°C
- 8/16 2.5GbE PoE port by M12/RJ-45 connector type for efficient camera network management
- Built-in CANBus 2.0A/B with SocketCAN support, compliant with SAE J1939
- Intelligent solution of vehicle power management (smart ignition)
- Up to 4 convenient swappable SATA trays for high-capacity video recording
