Edge-Centric Security for Modern Industrial Infrastructure
|
|
| |
As industrial operations become increasingly connected and data-driven, the convergence of IT and OT networks introduces new cybersecurity risks, particularly at the edge. For a leading industrial automation company with widely distributed remote assets, protecting its OT infrastructure was a top priority. The company needed a highly reliable Industrial IoT (IIoT) gateway that could serve as a secure bridge between legacy OT systems and modern digital platforms. This gateway had to withstand harsh environmental conditions while supporting strong cybersecurity protocols, acting as the first line of defense against potential threats targeting critical industrial processes.
|
|
|
| |
|
The customer, a global industrial automation company specializing in remote monitoring and control systems, required a rugged, secure, and easily deployable IIoT gateway to support its field-deployed data collectors. The solution needed to operate reliably in harsh industrial environments, seamlessly integrate with the company’s proprietary BSD-based platform, and offer real-time data processing with secure communication capabilities.
|
| |
| Main Requirements |
- DIN-rail kit and system image pre-installed for fast deployment
- Custom BIOS with in-band ECC for secure, reliable operation
- Image fine-tuning and compatibility testing with a BSD-based OS
- Anti-tamper labels and adhesive tape for physical protection
- Burn-in testing on every unit to ensure industrial-grade reliability
|
| |
|
Axiomtek iNA200 for Secure Industrial Connectivity
|
|
| |
|
To meet the customer’s stringent requirements, Axiomtek offered the iNA200, a fanless DIN-rail cybersecurity gateway powered by the Intel Atom® x6414RE quad-core processor. Purpose-built for rugged edge environments, the iNA200 operates reliably in extreme temperatures ranging from -40°C to 70°C, and supports a wide 9 to 36 VDC dual power input, ensuring stable performance in industrial settings.
With up to 32GB of DDR4 memory, dual 2.5GbE LAN ports, and high expandability, the iNA200 delivers the computing power, network flexibility, and durability essential for mission-critical OT cybersecurity applications. Its TPM 2.0 module, FreeBSD support, and versatile I/O interfaces enable seamless integration with existing systems while upholding advanced security standards
|
 |
| |
|
Industrial IoT Gateway for OT Cybersecurity
|
| |
|

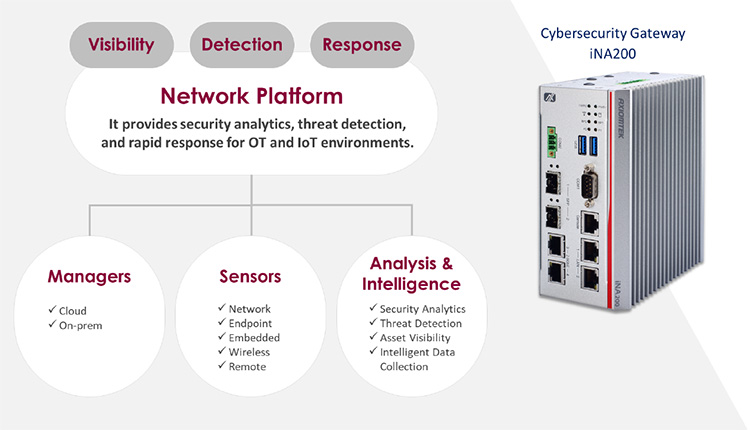

The customer deployed Axiomtek’s iNA200 as remote data collectors to gather asset and network information from distributed field sites. These gateways securely transmit the collected data to the central guardian platform for real-time monitoring, analysis, and threat detection.
|
 |
| |
| iNA200: Fanless DIN-rail Cybersecurity Gateway for OT Network Security |
- Intel Atom® x6414RE, 1.5 GHz, quad-core processor
- 2 2.5GbE and 2 SFP LAN ports
- 1 RJ-45 console, 2 USB 3.2, 1 HDMI
- TPM 2.0 for hardware security
- 9 to 36 VDC dual power input
- -40°C to +70°C wide temperature range
- FreeBSD support for system compatibility
|
| |
|
|
| |
|
Axiomtek brings deep expertise in industrial computing and proven experience in OT cybersecurity, delivering reliable and customizable solutions built for edge environments. From rugged hardware design to software integration and security optimization, Axiomtek collaborated closely with the customer to fulfill strict performance, deployment, and compliance requirements, ensuring a seamless and secure IIoT implementation.
Our customers demand robust and reliable security at the edge—no matter how remote or rugged the location. Axiomtek’s iNA200 gives us the flexibility, industrial durability, and performance we need to extend visibility and threat detection across critical infrastructure. It integrates seamlessly into our platform and enables our sensors to operate securely even under the harshest conditions.
|
| |
|
|
|
